Empire 36" Tahoe See-Through Direct Vent Gas Fireplace

OVERVIEW

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the
case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run,
but can also be installed elsewhere in the home and vented through the roof.

Advantages

• Good efficiency – 60 to 80%
• Good heat output with thermal transfer through the glass and air circulation
• Separates room air from combustion air
• May be used as primary heat source
• Can operate with a remote or thermostat
• Most systems can provide life-saving heat during a winter power outage

Tahoe Multi-Sided (DVP36SP)

Heater Rated at 35,000 Btu input, the Tahoe Multi-Sided system draws in outdoor air to support combustion and sends its exhaust directly outdoors, and must be located in a position that allows venting through an exterior wall or through the roof. Tahoe Multi-Sided fireplaces install using readily available 4 x 6 5/8 direct-vent pipe.

Tahoe Multi-Sided systems include a built-in 24-inch Slope Glaze Vista Burner, large tempered-glass viewing windows, Banded Brick Liner, ceramic fiber floor liner, dimmer controlled lighting, and glowing embers. The 24-inch Rock Creek Log Set and barrier screens must be ordered to complete the fireplace. (Doors are not available for multi-sided fireplaces.)

FEATURES

• Up to 35,000 BTUs
• Banded brick ceramic fiber liner
• Large tempered glass view windows
• Built-in 24" Slope Glaze Vista Burner
• Standing pilot with remote-ready millivolt controls
• Two open sides provide an excellent view of flames
• Slope Glaze Vista Burner use with Rock Creek refractory log set only

• Dimmer Controlled Accent Light
• Banded Brick Liner

• Two Fireplace Barriers
• Rock Creek Log Set

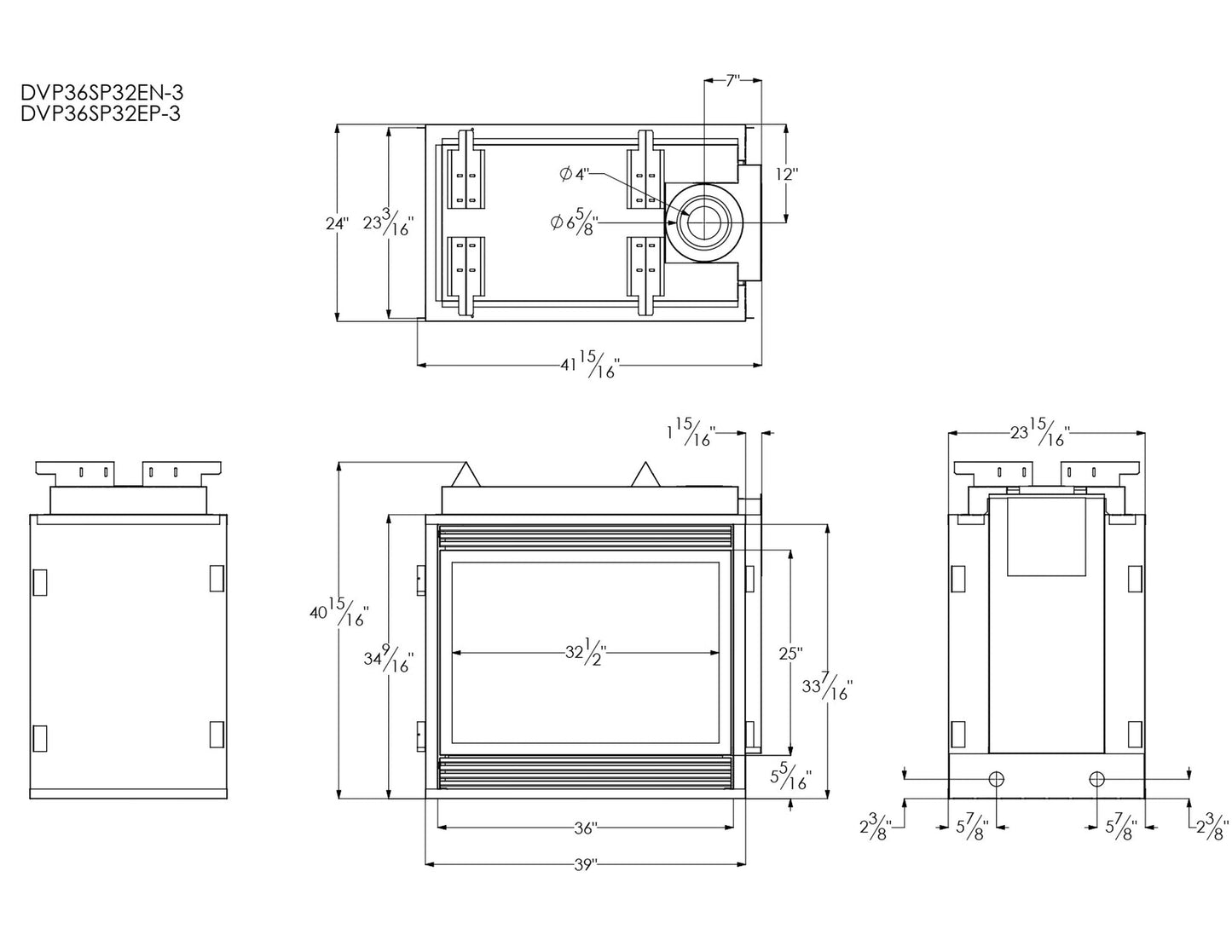

Specifications
