Empire 48" Boulevard Direct Vent See-Through Linear Gas Fireplace

OVERVIEW

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.

Advantages:

• Good efficiency – 60 to 80%
• Good heat output with thermal transfer through the glass and air circulation
• Separates room air from the combustion air
• May be used as a primary heat source
• Can operate with a remote or thermostat
• Most systems can provide live-saving heat during a winter power outage

Boulevard See-Through Linear Direct-Vent Fireplaces

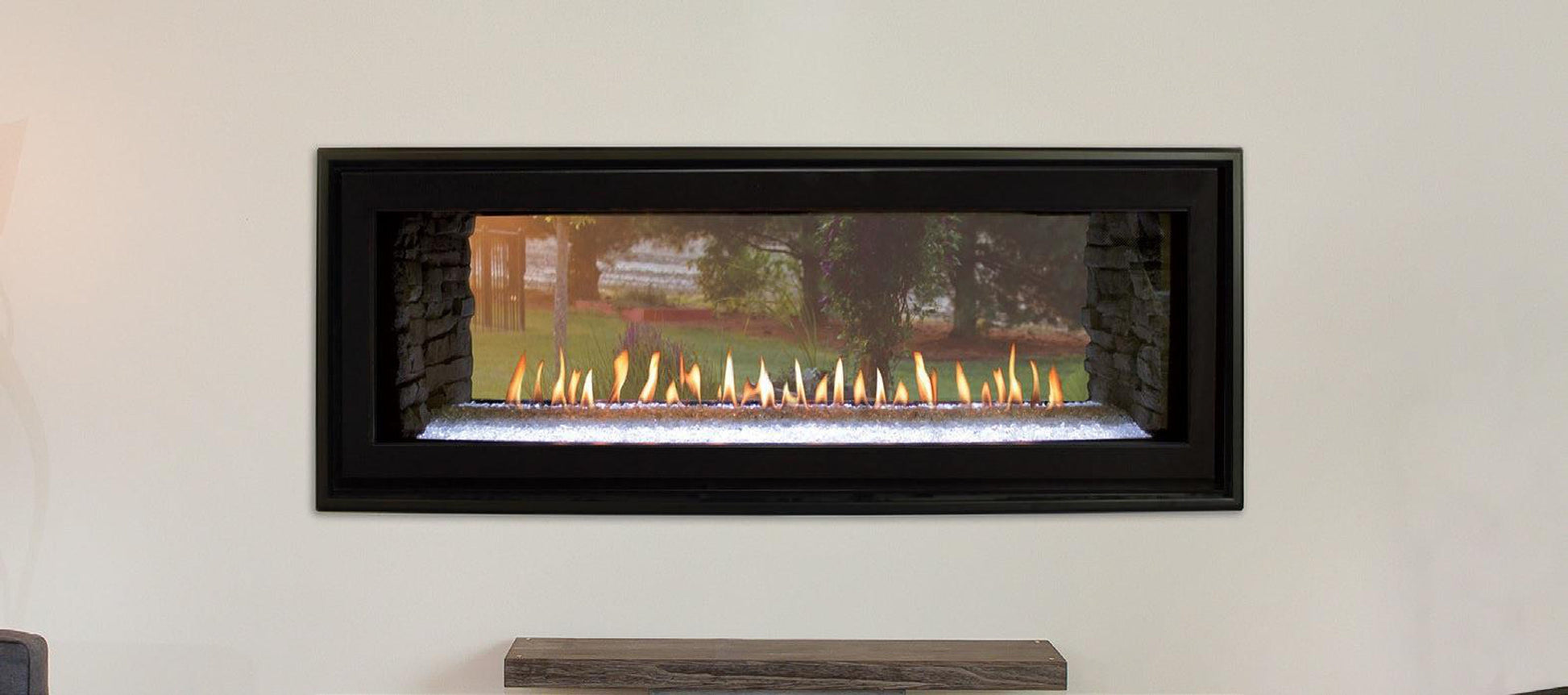

The new Boulevard 48 Direct-Vent See-Through fireplace features a true 48-inch viewing area, fully recessed burner, and white LED underfloor lighting. This system installs in an interior wall to brighten adjoining rooms – or in an exterior wall with the optional stainless steel outdoor kit for a beautiful view, indoors and out. Customize the look with liners, logs, fronts, and decorative glass.

Ceramic Glass: 13 x 48
Venting: 5 x 8 Top Vent Only//Requires 12-inch min. vent rise
Framing 51-3/4 H x 68 W x 19-1/2 D (indoor wall)
Framing 51-3/4 H x 68 W x 21-1/4 D (outdoor wall)

Includes:

• Multi-Function Remote to control burner and white LED accent lighting
• Ceramic Glass
• Barrier Screen
• Noncombustible Board for top (x2)

Requires:

• Liner
• Decorative Crushed Glass (8 sq.ft. required, additional decorative media may be added as accent)

This fireplace installs as -

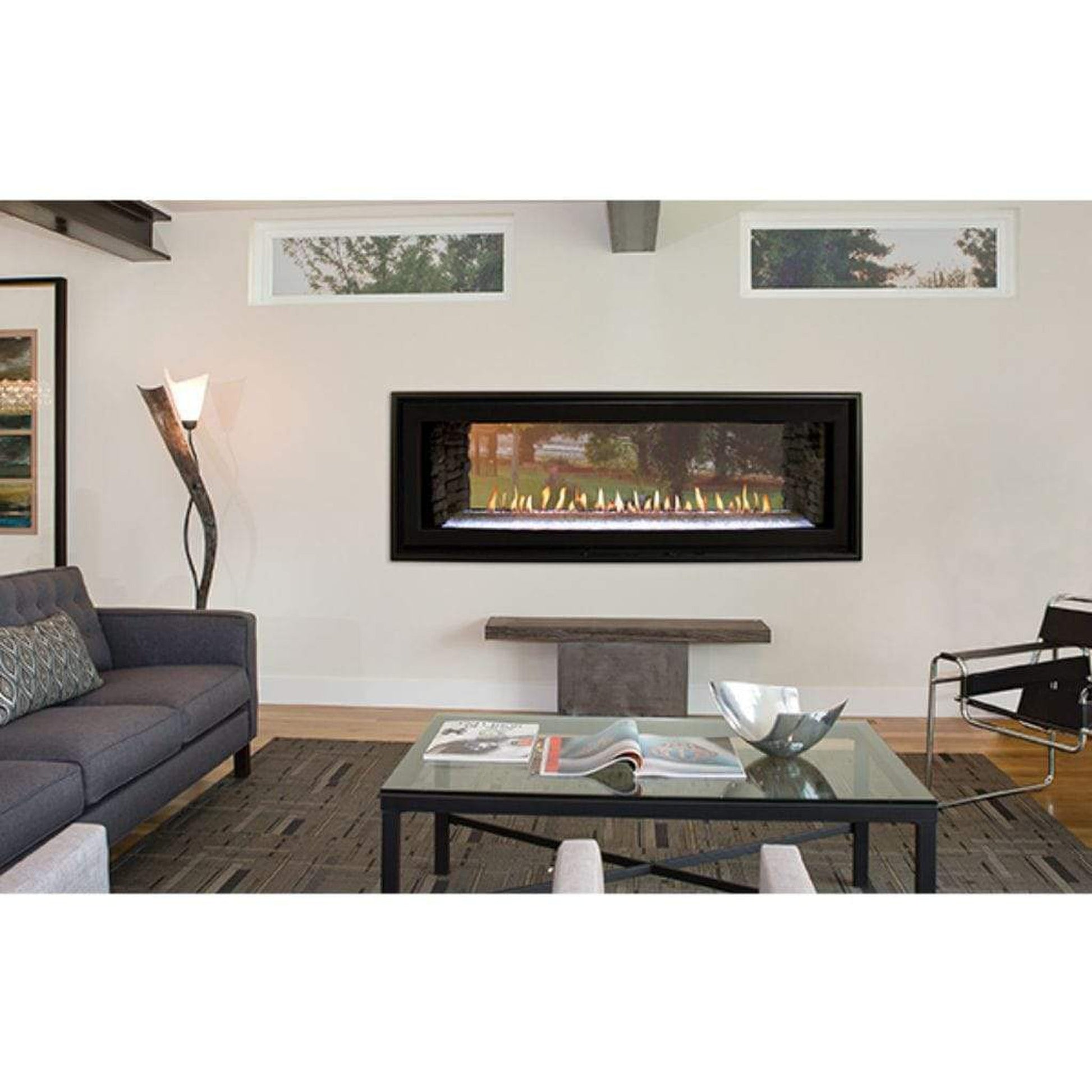

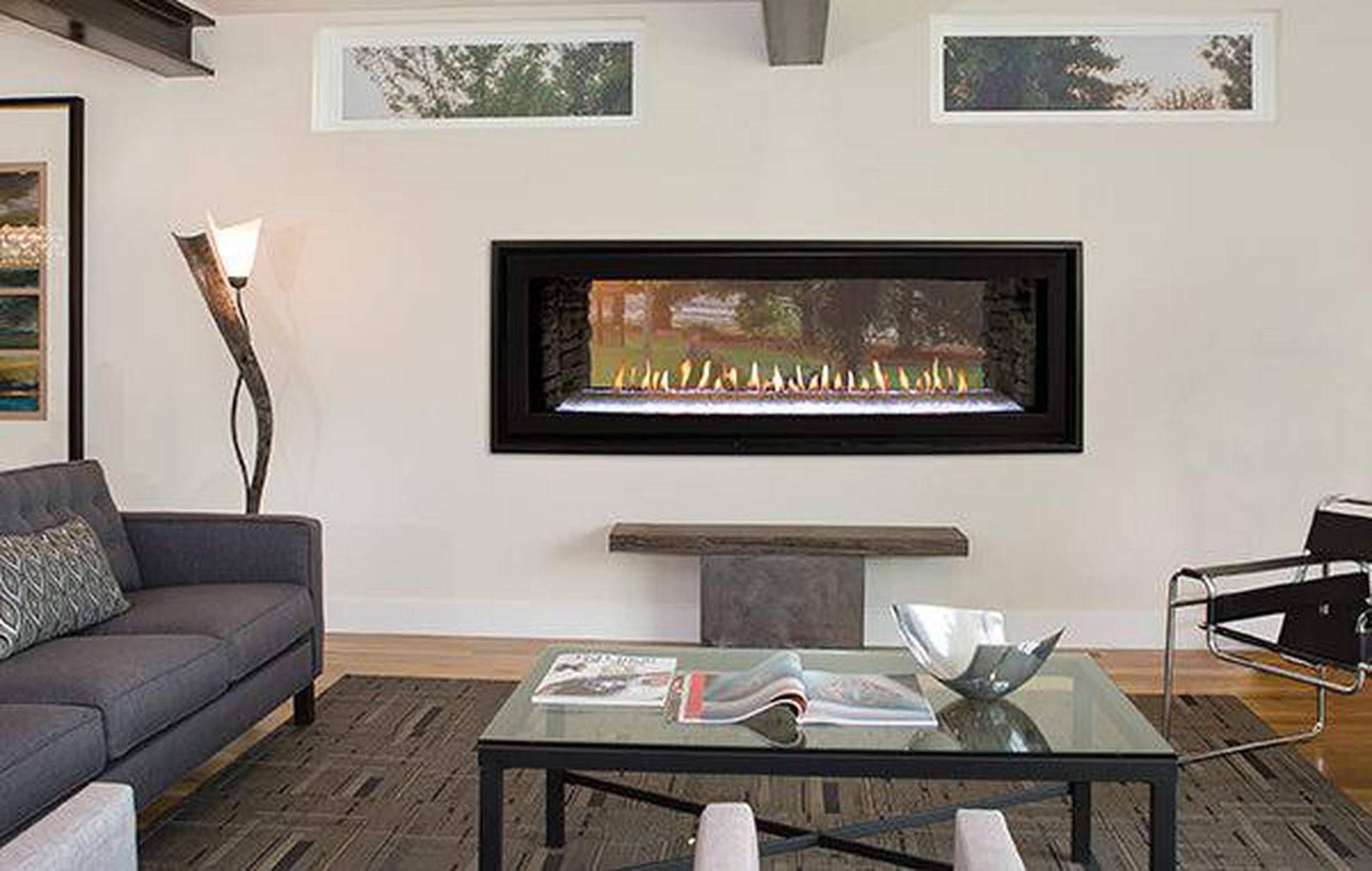

Conventional See-Through on an interior wall. Requires finishing to the fireplace opening on both sides with plaster/tile/stone/brick - with or without decorative frames.

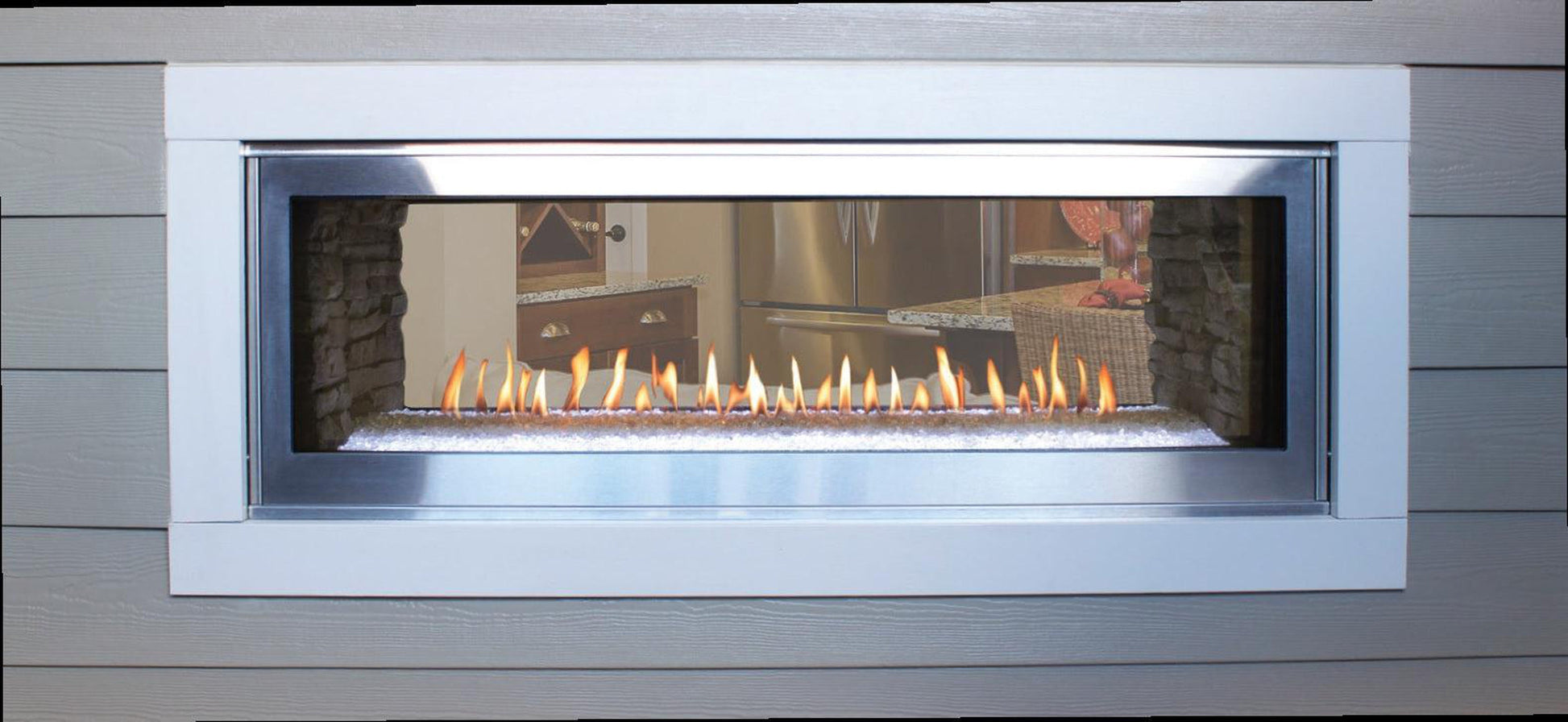

Indoor/Outdoor See-Through on an exterior wall. Requires finishing to the fireplace opening on
the interior side with plaster/tile/stone/brick - with or without a decorative frame.
Exterior wall requires special framing and the Exterior Decorative Front (DFED489SS)
