SKU:DVCP34BN91N

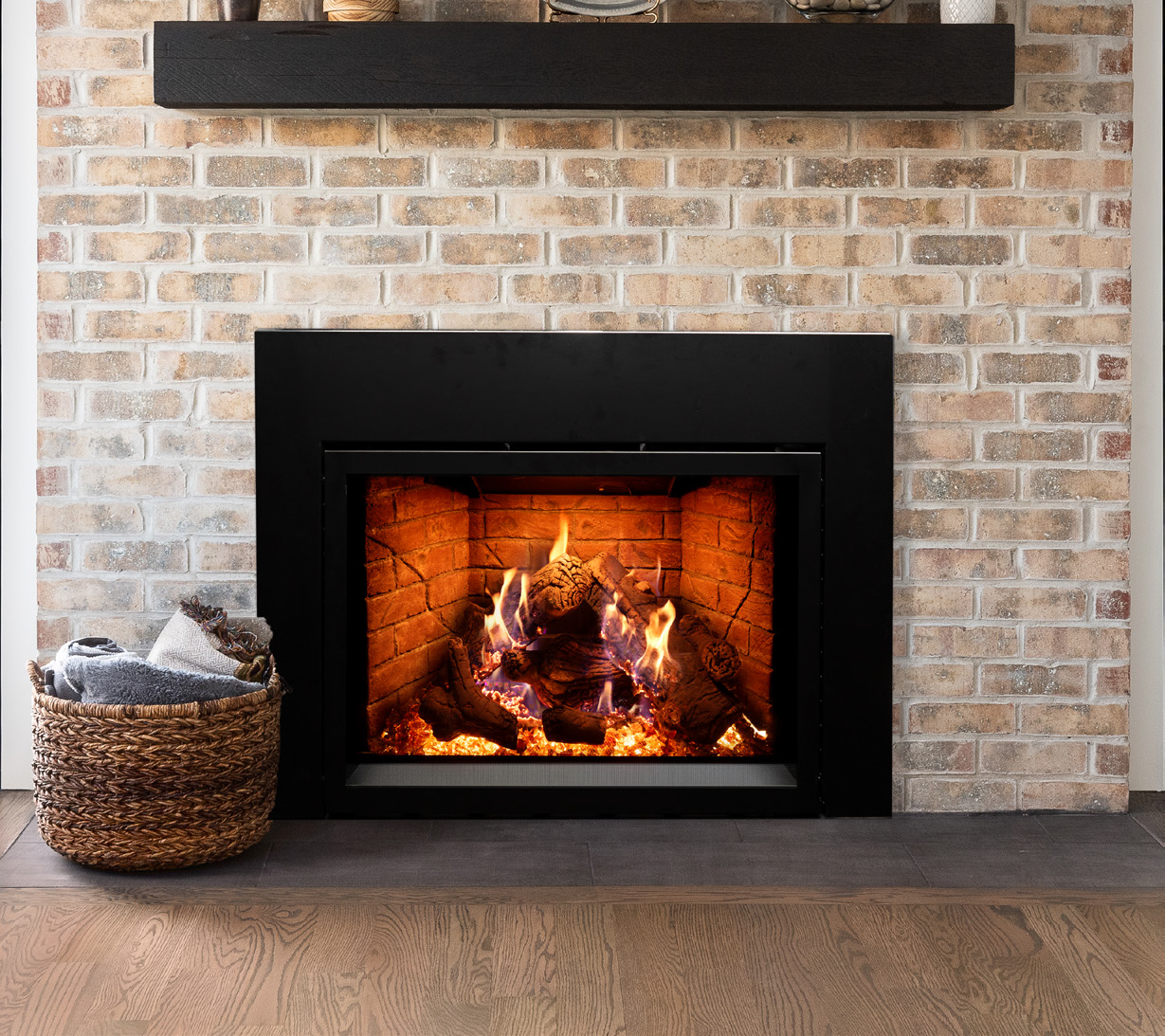

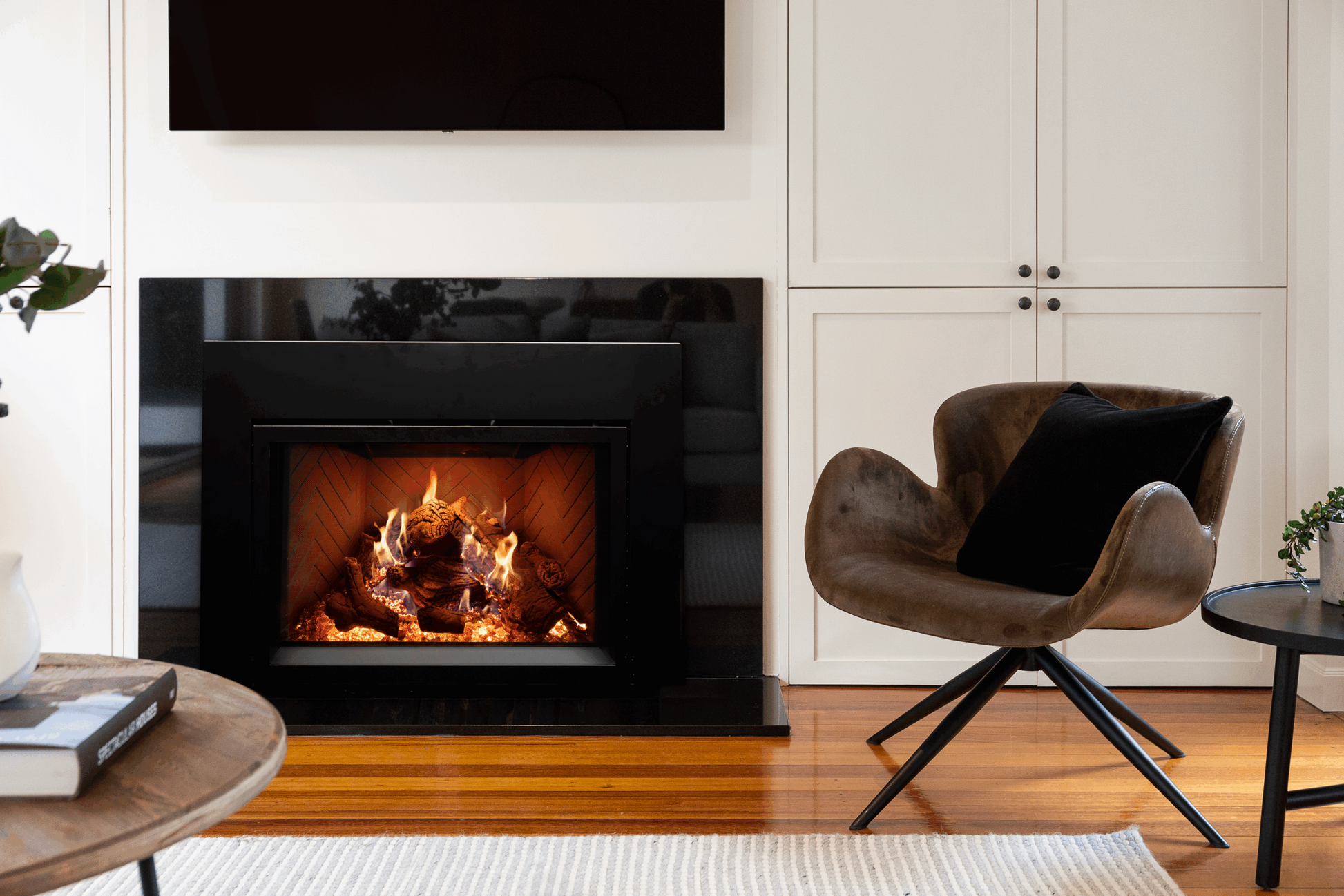

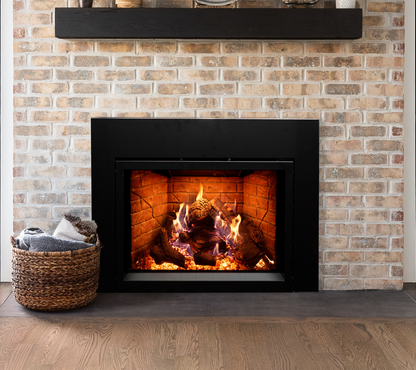

Empire Rainier 34" Intermittent Pilot Control With On/Off Switch, Natural Gas Direct Vent Fireplace Insert
Empire Rainier 34" Intermittent Pilot Control With On/Off Switch, Natural Gas Direct Vent Fireplace Insert
Log Set (Required)
-- Please Select --
No, Thank You
Liner (Required)
-- Please Select --
No, Thank You
Surround (Required)
-- Please Select --
No, Thank You
Decorative Frame
-- Please Select --
No, Thank You
Forged Iron Inset
-- Please Select --
No, Thank You
Gas Conversion Kit
-- Please Select --
No, Thank You
Venting Accessories
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
The Rainier Insert: Your Fireplace, Transformed
Turn your old fireplace into the stunning centerpiece your home deserves. The new Rainier Insert delivers a breathtaking fire that combines the beauty of a natural flame with the convenience of a modern gas appliance. This is more than an upgrade— it’s a complete transformation.
What's Included
- Rainier Direct Vent Fireplace Insert
- Accent blower
- Ember glass
- Ember and top accent light
- Triple burner with 2 elevated burners
- Glowing embers
- Battery back up
- Ceramic glass
- PF2 ignition system with remote
- Power cord
Not Included (Sold Separately)
- Log Set (Required)
- Liners (Required)
- Surrounds (Required)
- Decorative Front Frame
- Decorative Arch Inset
- Decorative Rectangle Inset
- Decorative Beveled Frame
- Gas Conversion Kit
- Venting Accessories
Features
- A Captivating Fire: Our advanced elevated burners are the secret behind the unit’s stunning realism. They produce a dynamic, multi-dimensional flame that rises and dances with lifelike depth. This, along with a powerful triple burner system and an underlit ember bed that radiates a vibrant, warm glow, creates a truly authentic experience.
- An Expansive View: Enjoy the full, dramatic beauty of the fire through a generous 19" H x 281/4" W glass viewing area. It’s a captivating show from any angle in the room.
- Cozy Warmth: With an adjustable heat output from 21,000 to 32,000 BTUs, the Kennedy offers a versatile heat source for a wide range of rooms. A built-in blower circulates warm air to ensure your space feels cozy and comfortable from corner to corner.
- Effortless Control: The included full-function remote control lets you manage the flame height, blower speed, and lighting with ease. And with a battery backup, you can enjoy the warmth and ambiance even during a power outage.
Specifications
| Model | DVCP34BN91N |
| Vent Type | Direct Vent |
| Finish | Black |
| Installation | Fireplace Insert |
| Fuel Type | Natural Gas |
| Ignition Type | Intermittent Pilot |
| Input BTU/HR Maximum (Three Burners High) | 32,000 |
| Input BTU/HR Maximum (Three Burners Low) | 21,000 |
| KWH (Maximum) | 9.38 |
| KWH (Minimum) | 6.15 |
| Orifice (Center) | 51 |
| Orifice (Left) | 49 |
| Orifice (Right) | 52 |
| Air Shutter Opening (Center) | 1/16" |
| Air Shutter Opening (Left) | 1/16" |
| Air Shutter Opening (Right) | 1/16" |
| Gas Inlet Shut-off Valve (Pipe) | 3/8 MIF |
| Gas Supply Pressures |
| Maximum | 14 |
| Minimum | 4.5 |
| Manifold | 3.5 |
Minimum Fireplace Opening Dimensions
| Width | 34" |
| Height | 24" |
| Depth | 18" |
Warranty
- Limited Lifetime Parts Warranty With A Five - Year Limited Labor Warranty – Combustion Chamber
- Limited Ten - Year Parts Warranty – Venting
- Limited One - Year Parts Warranty – Accessories and Parts
Documents & Files
- Product Brochure
- Installation Manual
- Homeowner's Manual
- Installation Instructions Log Set - LS34TIN
- Installation Instructions Log Set - LS34BIN
- Installation Instructions Liners
- Installation Instructions Surrounds
- Installation Instructions Frames
- Installation Instructions Inset
-
Installation Instructions Gas Conversion Kit (NG to LP)
Frequently Asked Questions
Can I buy a fireplace online and install it myself?
We highly recommend a certified professional install all of our units. Any issues that arise from improper installation will not be covered under warranty. |
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between Millivolt and electronic ignition fireplaces?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
What is the difference between a fireplace, a firebox, and an insert?
Fireplaces are designed to be installed into a framed opening with specific clearances to combustibles. Fireboxes are just like Fireplaces in terms of where they can be installed but in addition a burner and a set of logs is required to finish off the unit. Inserts are designed to be installed directly into an existing wood burning fireplace that meets all standards of construction. |
